Is Your Powder Curing Oven Bleeding Money
In a typical powder coating plant, the curing process is the biggest “energy hog.” In fact, it often accounts for up to 70% of your total utility expenses. Most factory owners accept high gas or electricity bills as a fixed cost of doing business. But here is the hard truth: if your equipment is outdated or poorly maintained, your powder curing oven is literally leaking profit into the air. You don’t need a massive budget to fix this. Small technical adjustments can lead to massive cumulative savings. Here, we will break down four high-impact areas where you can audit your equipment.
Stop the Heat Escape: Optimizing Insulation in Your Powder Curing Oven

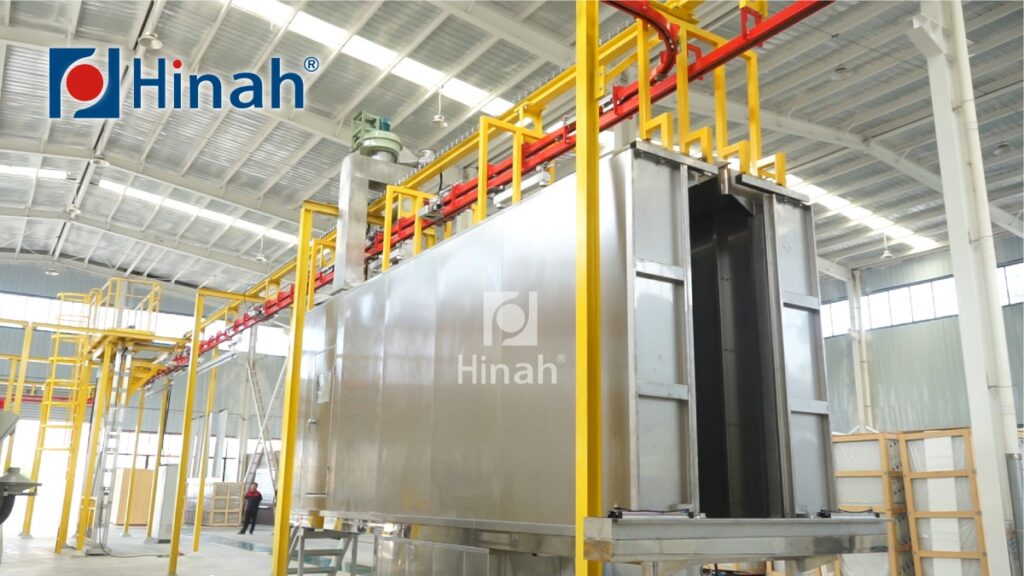

Every degree of heat that escapes your oven is money coming out of your pocket. In many older powder coating plant setups, insulation is the first thing to fail. Over time, high-density rock wool can settle or degrade, creating gaps that let hot air leak into the factory.
The biggest culprits are “thermal bridges.” This happens when metal parts from the inside of the oven touch the outside shell. These metal paths conduct heat directly out of the powder curing oven, forcing your burners to work twice as hard to maintain temperature.
How to audit your insulation:
The Touch Test: Walk around your oven during a production shift. If the exterior wall feel shot to the touch, your insulation is insufficient.
Check the Seals: Inspect the high-temperature gaskets around the oven doors. Even a small crack allows massive amounts of energy to escape.
Upgrade the Density: If you are building or retrofitting a powder curing oven, use high-density rock wool (at least 100 kg/m³)
By sealing these leaks, you can reduce your gas consumption by 10% to 15% almost immediately. It is the simplest way to boost the efficiency of your entire finishing line.
Burner Calibration: Tuning the Heart of Your Powder Coating Plant
Think of your burner as the engine of your powder coating plant. If it isn’t tuned correctly, it’s like driving a car with a clogged filter—you use more gas but get less power.
Many factories use old “On/Off” burners. These are either 100% on or completely off. They waste a lot of fuel because they constantly “overshoot” the temperature. To save money, consider upgrading to a modulating burner. This system acts like a dimmer switch, adjusting the flame size to give you only the heat you actually need.
Airflow Uniformity: The Key to Efficiency in a Powder Curing Oven
In a powder curing oven, heat is only half of the story. The air needs to move to do its job. If the air stays still, you get “cold spots.” This forces you to turn up the heat or slow down the conveyor just to make sure every part is cured. This is a huge waste of time and money.
When air flows evenly, every part reaches the right temperature at the same time. This allows you to run your powder coating plant faster without worrying about quality issues or “under-cured” parts.
Waste Heat Recovery: Recycling Energy within Powder Coating Plant
Finally, look at your exhaust stack. That hot air blowing out of the roof is literally your money vanishing into the sky. A waste heat recovery system captures that heat and puts it back to work.
For example, you can use the extra heat from your powder curing oven to warm up the water in your cleaning tanks. This reduces the load on your other heaters. It creates a “closed loop” of energy that makes your entire powder coating plant much cheaper to run. Most of these systems pay for themselves in less than two years through energy savings alone.
